● Lens: Use imported multilayer coating lens combination, the diameter of beam aperture is up to 200mm
● Projection Distance: Over 3000m in similar parallel light
MOVEMENT
● Pan and Tilt: Use high precision 3-phase motors for pan and tilt, accurate location, smoothly moving, automatic correction location
● Pan: 540°rotation, 8/16Bit adjustment
● Tilt: 270°rotation, 8/16Bit adjustment
COLOR SYSTEM
● 1 Color Wheel: Use Taiwan high temperature color filters, 11pcs colors+open, half color and rainbow effect
● 1 Rainbow Wheel: Use Taiwan filters, can project 1 or 8 beams of rainbow effect
GOBOS
● 1 Fixed Gobo Wheel: 14pcs fixed metal gobos+open, bidirectionally shaking & flowing at variable speed
CONTROL
● Control Mode: DMX512, RDM function(remotely set the address code via a large DMX512 controller), Auto Run, Sound Control, Master\Slave and Manual
● DMX Channels: 14/18CH
● Lamp Control: Control the lamp on/off via controller
PHYSICAL
● IP Grade: IP65
● DMX Connector: 3-pin waterproof signal in and out XLR
● Display: 2.8 inch colorful LCD screen, 180° inversion
● Power Cable: Waterproof power cable
MATERIAL
● Fixture Material: High hardness heat dissipation aluminum profile(die-casting aluminium), flame-retardant anti-aging high temperature engineering PVC, use outdoor imported fine sand spraying technology, anti-uv treatment, anti-aging, high temperature, long service life
COOLING SYSTEM
● Cooling System: Use Japan fans, the chip controls the fan speed, the original heat dissipation structure, cooperate with the radiator shell, guarantee the long time outdoor use
FEATURE
● Feature: It can be programmed independently via LCD display, master and slave lights are running synchronously without controller operation
WEIGHT & DIMENSION
● Fixture N.W.: 32.5Kg
● Carton G.W.: 35.5Kg
● Flight Case G.W.: 55Kg
● Fixture Dimension: L434*W400*H756(mm)
● Carton Dimension: L565*W490*H910(mm)
● Flight Case Dimension: L550*W480*H970(mm)

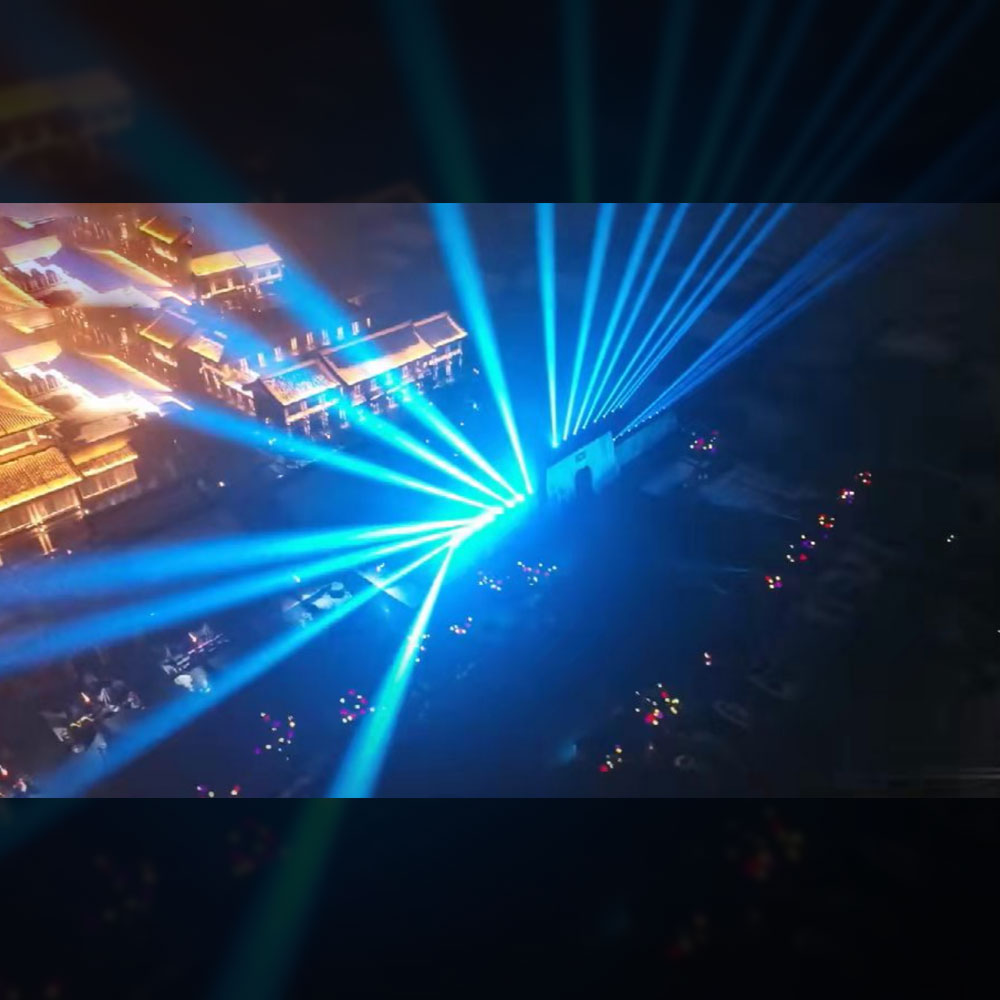

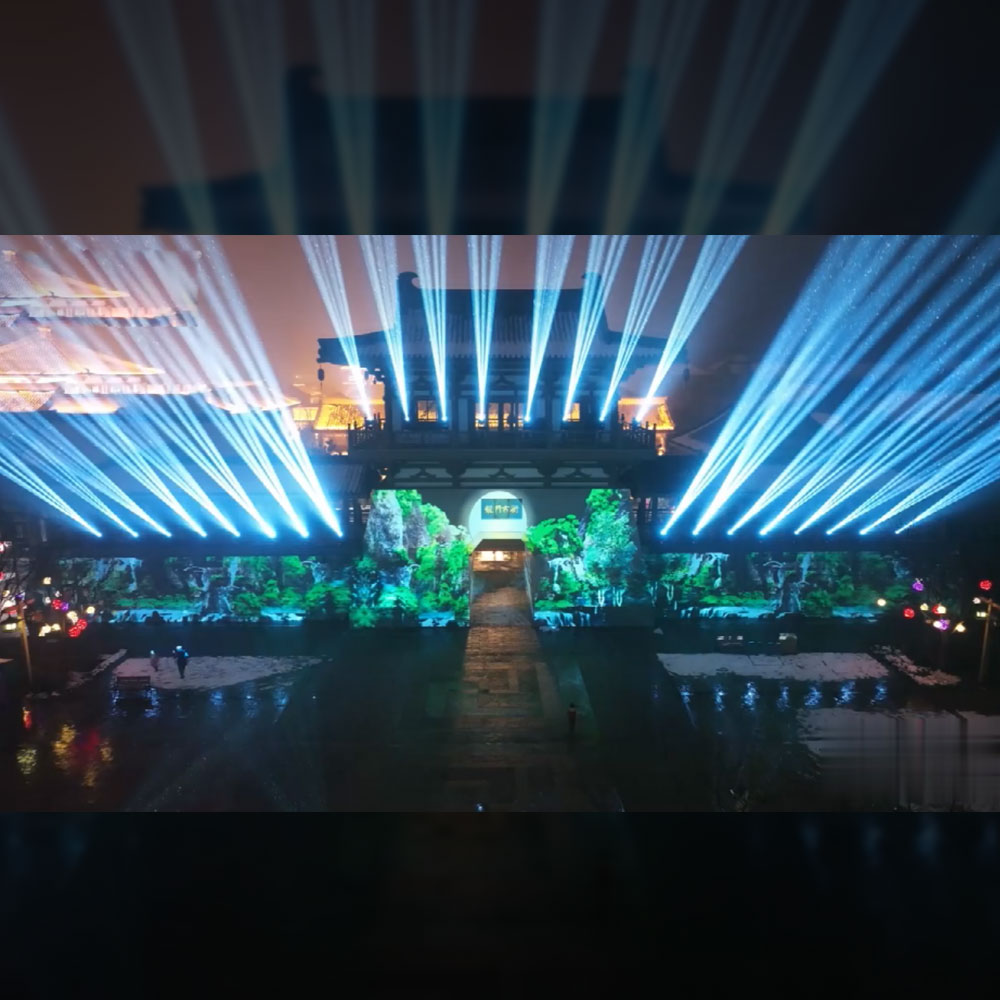

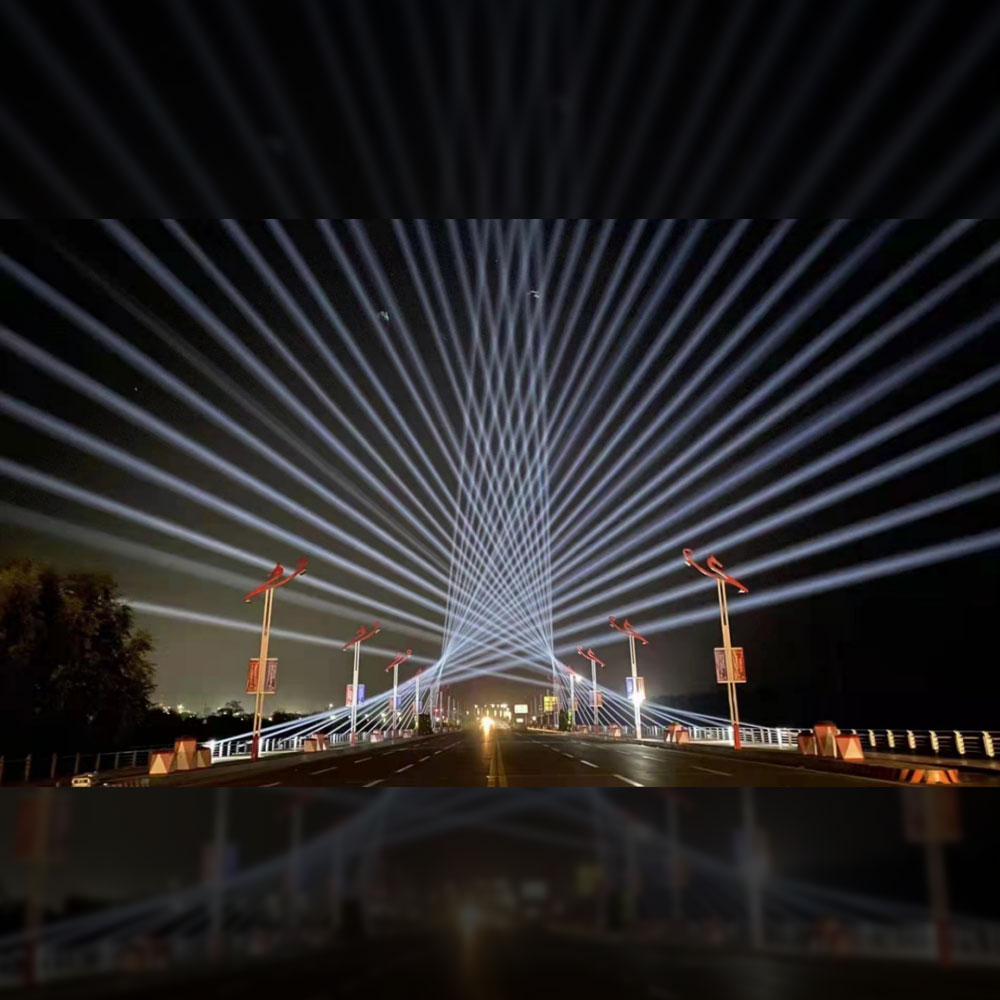

it has been widely used at concerts, theatre, studios, TV shows, living shows, churches, trade shows, hotels, fountain projects, large-scale landscape engineerings, architectural applications and so on.
* Error and emissions for every information given here is expected.
All information is subject to change without prior notice.
