LIGHT SOURCE

● Light Source: Original Customized PHILIPS lamp(7500K~8500K)

● Ballast: Original Customized PHILIPS

● Average Life Span: ≥1500hours

POWER

● Input Voltage: AC90~240V, 50/60Hz

● Power Consumption: 500W/600W/800W

OPTICAL SYSTEM

● Luminous Flux: 660000lumen@10m

● Beam Angle: 0~1.2°

● CRI: 85±5

● PFC: ≥0.95

● Focus: Motorized linear focus

● 1 Prism Wheel: 1pc 8-facet prism, bidirectionally rotating at variable speed (3-facet or 16-facet prism is optional)

● Frost: 1pc frost filter, can achieve soft light effect

● Dimmer: 0~100% mechanical dimming, smooth without flicker

● Shutter/Strobe: Independently strobe with double motors, 0.5~20 F.P.S, speed adjustable

● Lens: Use imported multilayer coating lens combination, the diameter of beam aperture is up to 200mm

● Projection Distance: Over 3000m in similar parallel light

MOVEMENT

● Pan and Tilt: Use high precision 3-phase motors for pan and tilt, accurate location, smoothly moving, automatic correction location

● Pan: 540°rotation, 8/16Bit adjustment

● Tilt: 270°rotation, 8/16Bit adjustment

COLOR SYSTEM

● 1 Color Wheel: Use Taiwan high temperature color filters, 11pcs colors+open, half color and rainbow effect

● 1 Rainbow Wheel: Use Taiwan filters, can project 1 or 8 beams of rainbow effect

GOBOS

● 1 Fixed Gobo Wheel: 14pcs fixed metal gobos+open, bidirectionally shaking & flowing at variable speed

CONTROL

● Control Mode: DMX512, RDM function(remotely set the address code via a large DMX512 controller), Auto Run, Sound Control, Master\Slave and Manual

● DMX Channels: 14/18CH

● Lamp Control: Control the lamp on/off via controller

PHYSICAL

● IP Grade: IP65

● DMX Connector: 3-pin waterproof signal in and out XLR

● Display: 2.8 inch colorful LCD screen, 180° inversion

● Power Cable: Waterproof power cable

MATERIAL

● Fixture Material: High hardness heat dissipation aluminum profile(die-casting aluminium), flame-retardant anti-aging high temperature engineering PVC, use outdoor imported fine sand spraying technology, anti-uv treatment, anti-aging, high temperature, long service life

COOLING SYSTEM

● Cooling System: Use Japan fans, the chip controls the fan speed, the original heat dissipation structure, cooperate with the radiator shell, guarantee the long time outdoor use

FEATURE

● Feature: It can be programmed independently via LCD display, master and slave lights are running synchronously without controller operation

WEIGHT & DIMENSION

● Fixture N.W.: 32.5Kg

● Carton G.W.: 35.5Kg

● Flight Case G.W.: 55Kg

● Fixture Dimension: L434*W400*H756(mm)

● Carton Dimension: L565*W490*H910(mm)

● Flight Case Dimension: L550*W480*H970(mm)

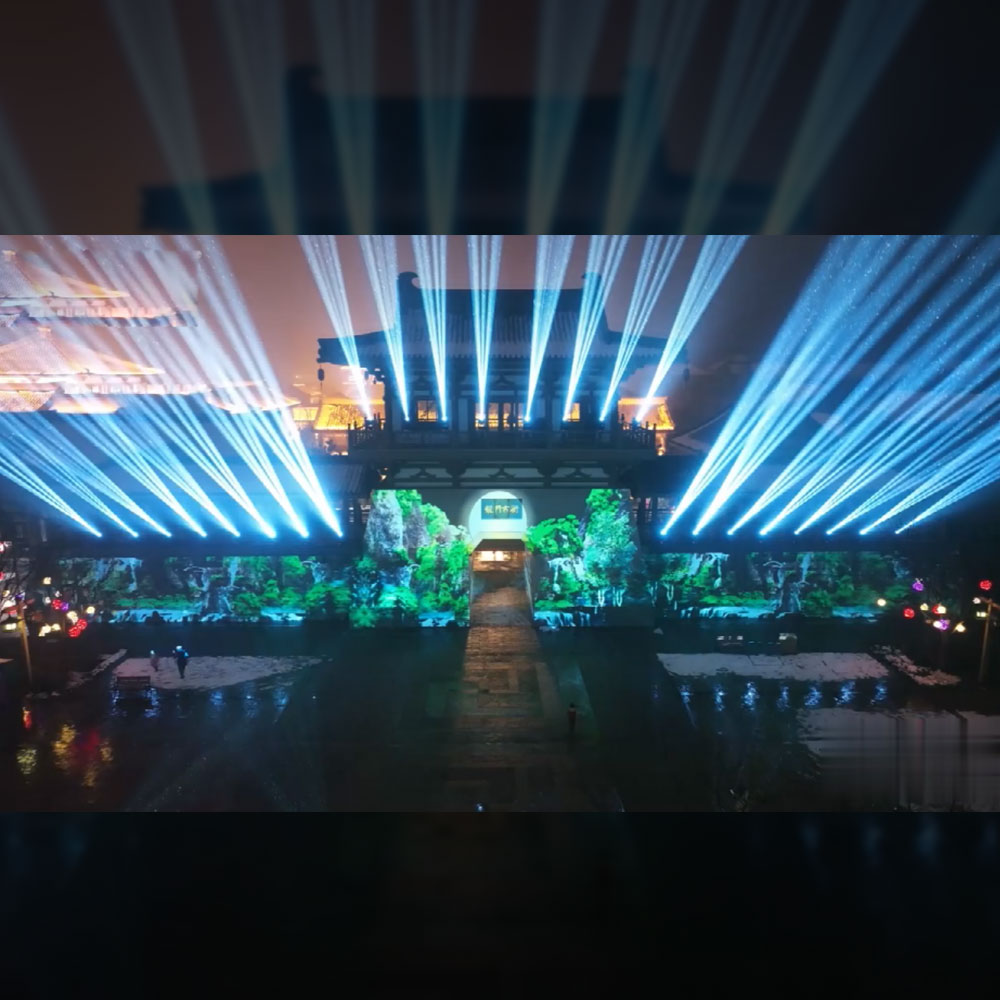

it has been widely used at concerts, theatre, studios, TV shows, living shows, churches, trade shows, hotels, fountain projects, large-scale landscape engineerings, architectural applications and so on.

*   Error and emissions for every information given here is expected.

    All information is subject to change without prior notice.
