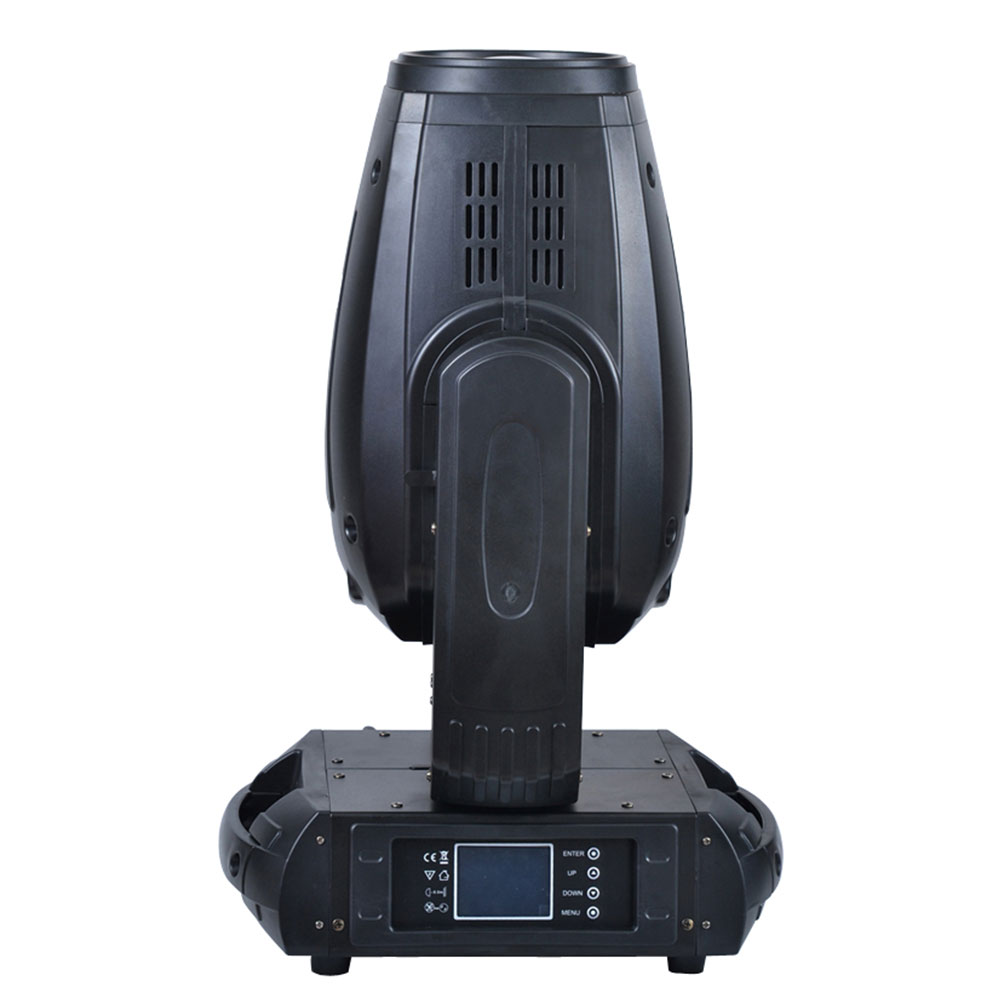

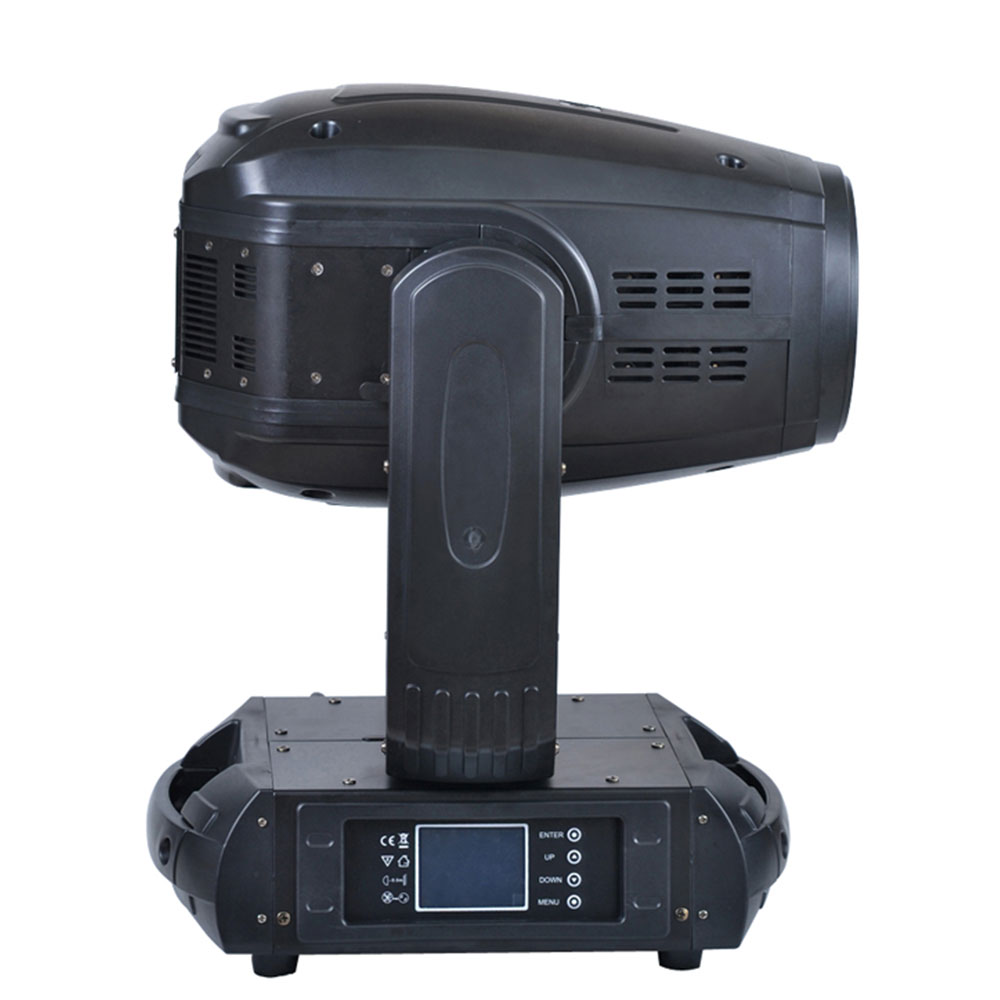

280W MOVING HEAD PATTERN LIGHT

-280W MOVING HEAD PATTERN LIGHT

Parameter

Demonstration

Video

Voltage: AC100-240V / 50-60Hz

Power: 470W, electronic ballasts

16/24 two kinds of channel selection modes

Bulb: OSRAM SIRIUS HRI 280 Power: 280W

Display: 2.2-inch color LCD display, can display 180 °rotation

Color Wheel: A color plate, there are 13 color film

Design: two gobo wheel, gobo wheel 13 fixed pattern +

white, rotating gobo wheel;

9 rotating gobos plus white

Prism effect wheel: two rotating prism, a circular eight prism, a

straight six prism, atomizing function.

Dimming: 0-100% mechanical dimmer, strobe and mechanical

support can speed stroboscopic effect, support

strobe macro function

Optical Focus: The lens group of the optical system, electric f

ocus, the beam angle 0-20 °

Remote control: photoelectric reset system, when accidental

misoperation, can automatically retrieve reset

Horizontal 540 °, 8 / 16Bit resolution

Vertical 270 °, 8 / 16Bit resolution

Temperature: thermal protection, the external

temperature of 40 °

Protection: IP20

size: 365 × 256 × 589mm (L × W × H)

Weight: 18KG
