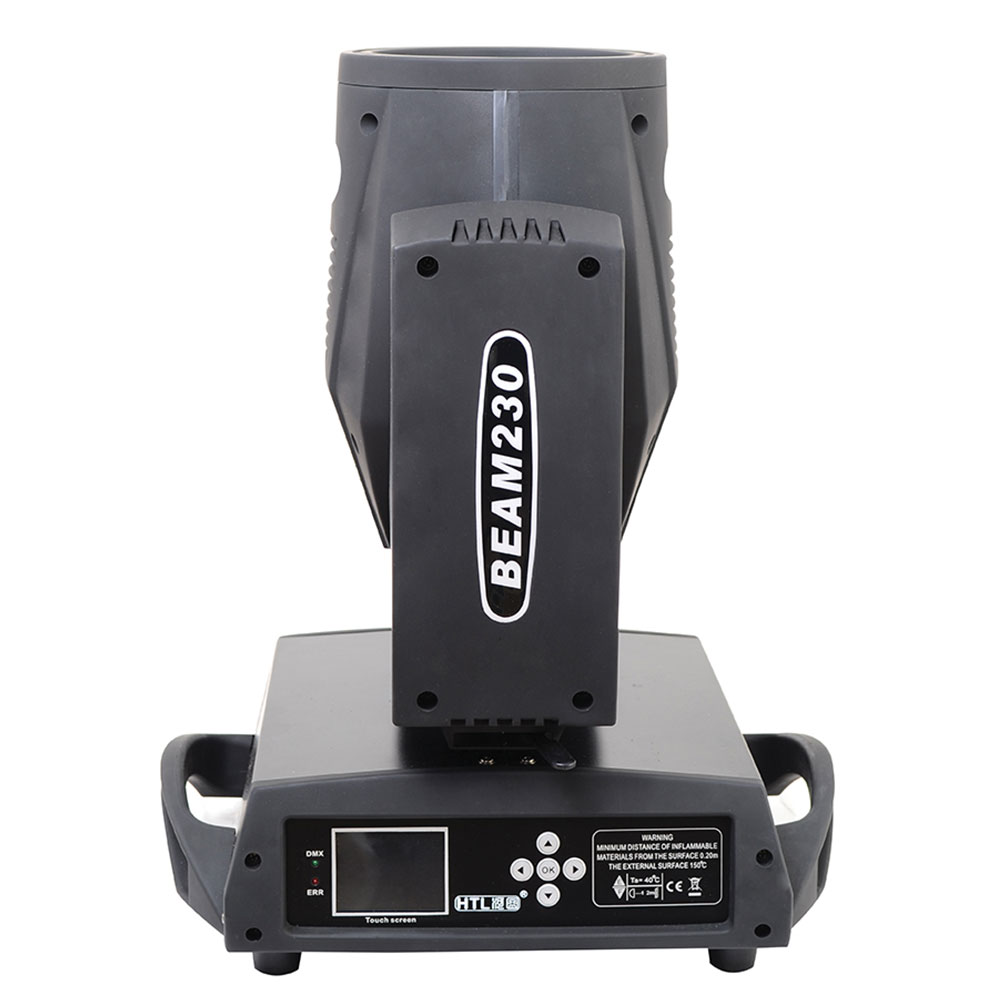

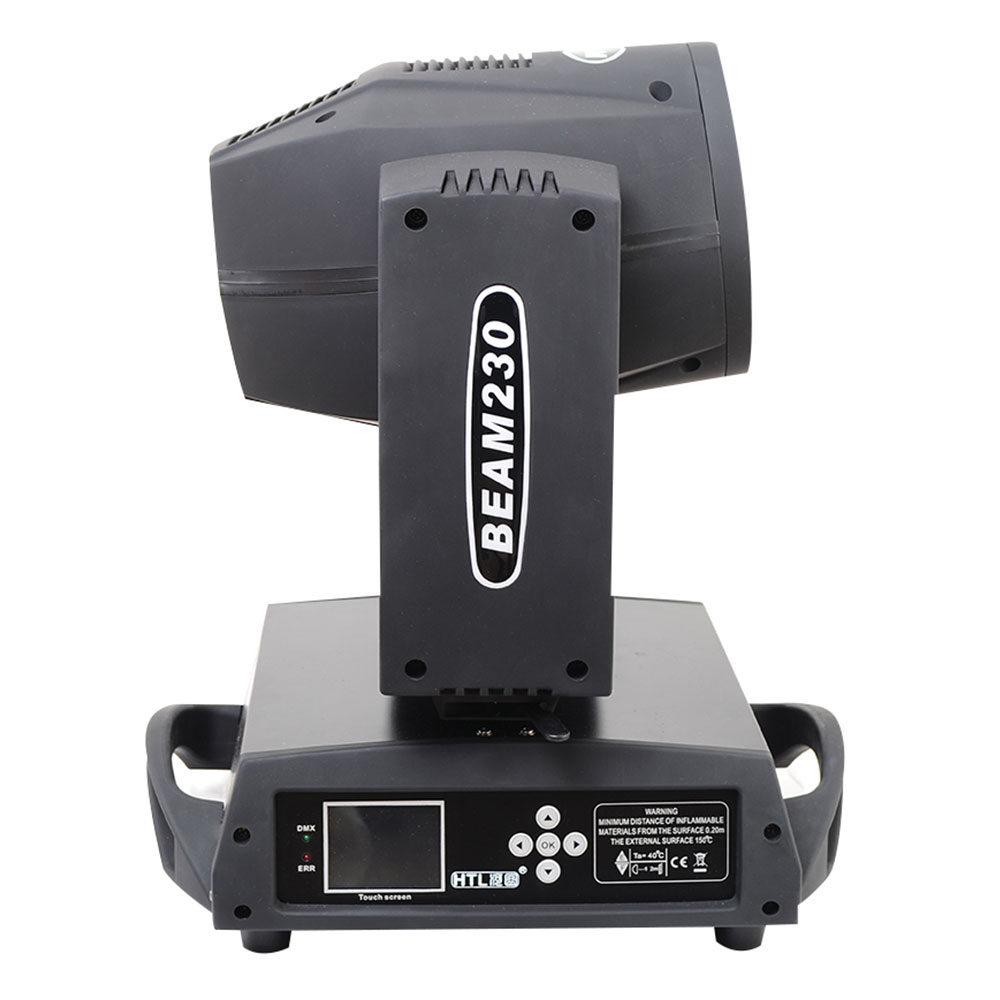

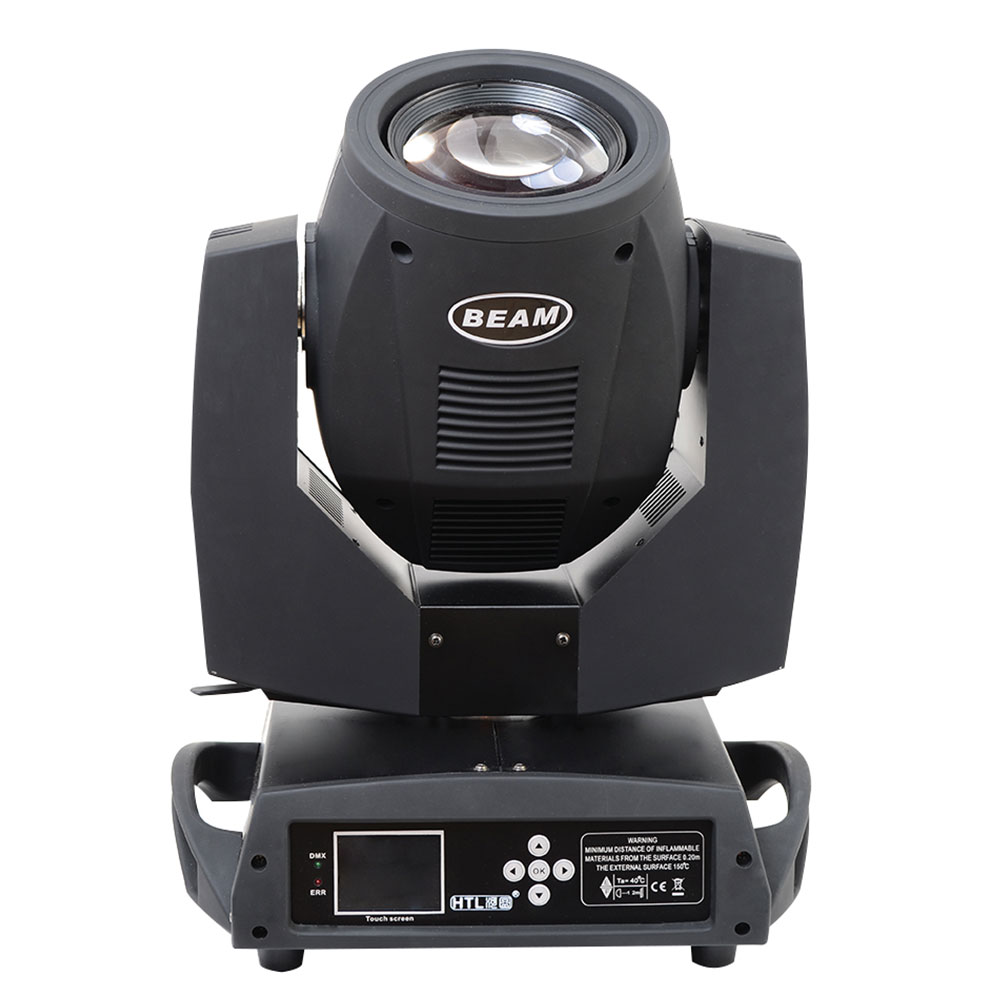

230 w moving head light

-230 w moving head light

Parameter

Demonstration

Video

Lamp：OSRAM MSD 230W

Input voltage: AC100-240V 50/60Hz

Power consumption: 300W

Display: Touch Screen display

Control protocol: DMX512

Channel: 16CH

Lens:3 in 1 high precision optical lens

Dimmer:0-100% linear dimmer

Strobe: bilateral cutter strobe frequency

maximum 13 times per

second And can choose random strobe and strobe pulse

Beam angle: horizontal beam angle 0-3.8°

Prism: 16 prisms and a rotating prism effect

Focus: electronic focus

Foggy:0-100%

Horizontal scanning: 540°(160bit precision scanning )

electron error correction

Vertical scanning: 270°(16bit precision scanning )

electron error correction

Gobo whee:17 gobos with bidirectional revolving rainbow

effect and gobo shake

Color wheel:14 colors with bidirectional function,

Lamp connection: 3-pin signal line input and output,

the power input

Cooling system: cooling fan and aluminum heat

cooling sheet Working environment: Indoor
